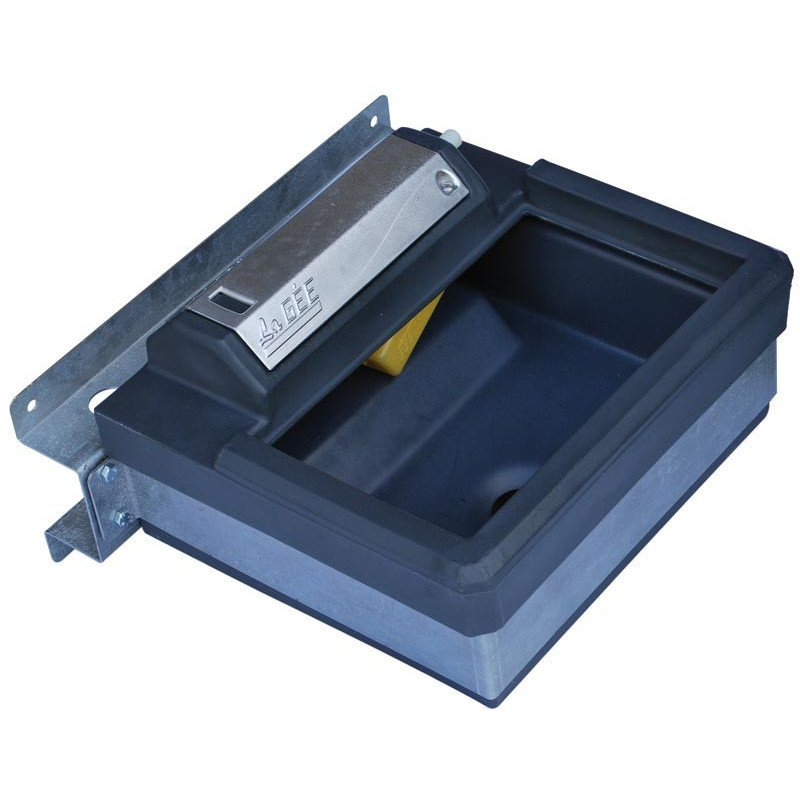

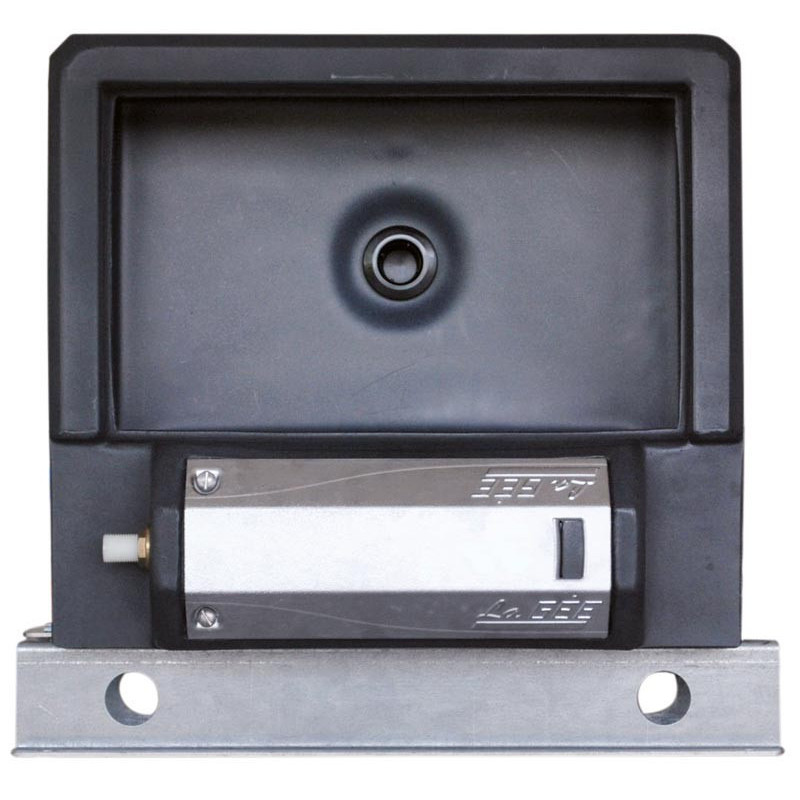

Single Polybac 25 M drinker with interior rim and fastening support : p1130520

Single Polybac 25 M drinker with interior rim and fastening support

Name: Single Polybac 25 M drinker with interior rim and fastening support
SKU: p1130520

POLYBAC M are simple and economical

Multi-purpose drinker with anti-spill rim.
Large capacity.

Code p1130520

Description

Made from rot-proof rotomolded polyethylene, these large capacity drinkers are fitted with the La Gée float valve 32 l/mn and a 33/42 through wall plug for quick cleaning and emptying.

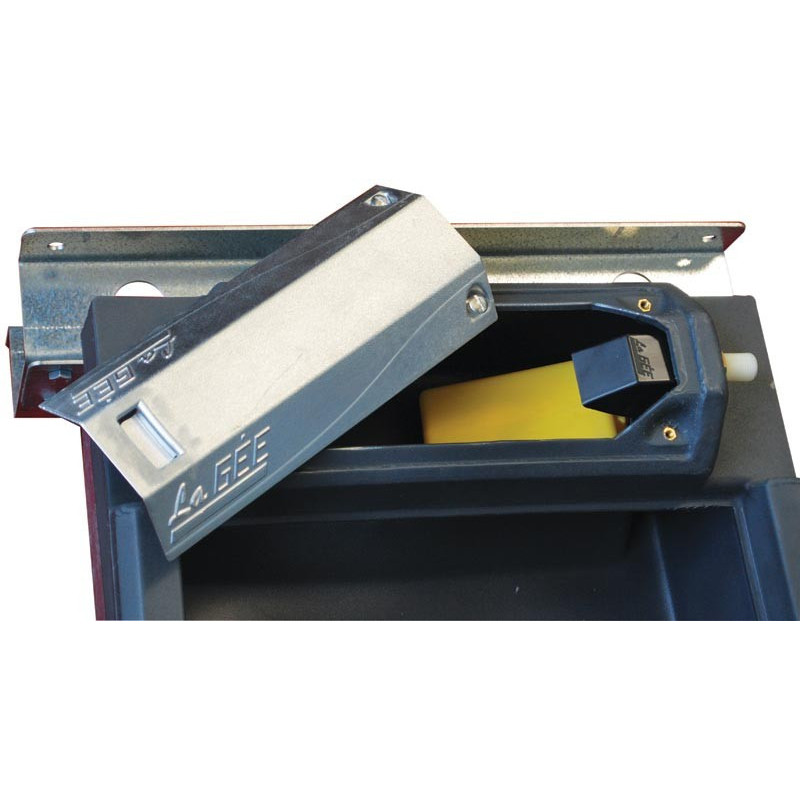

The mechanism is protected by a cast aluminium or stainless steel sheet housing. Wall trough supports are factory fitted with a water inlet on the wall side. Ideally operates on pressure range from 3 to 4 bars.

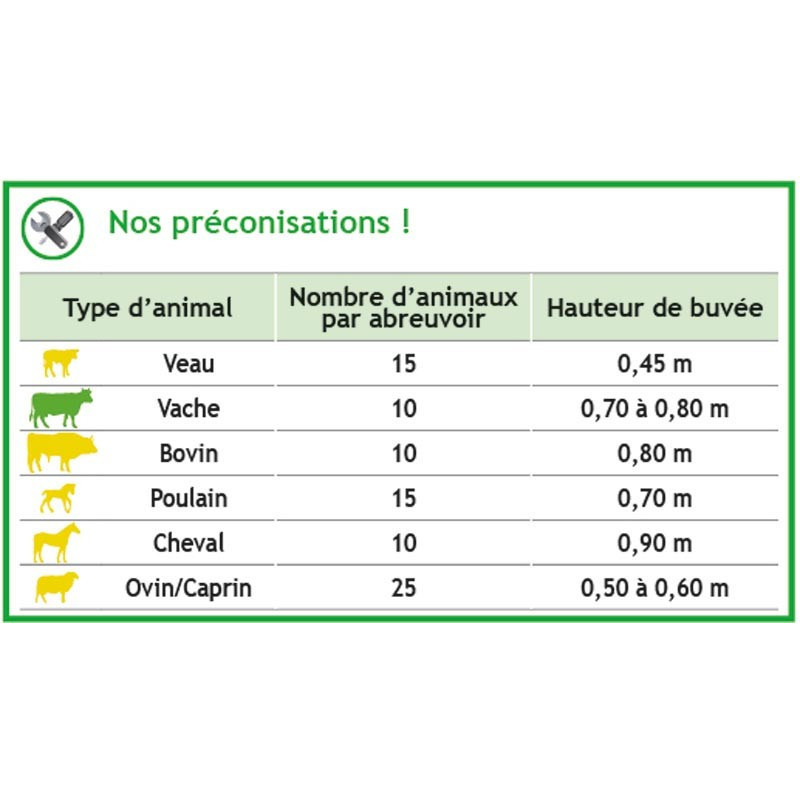

They are designed with a wide heavy-duty bowl suited to animal morphology (cattle, horses, goats).

Available in 2 versions : 25 M and 72 M. Designed with a wide heavy-duty pan with an anti-spill interior rim.

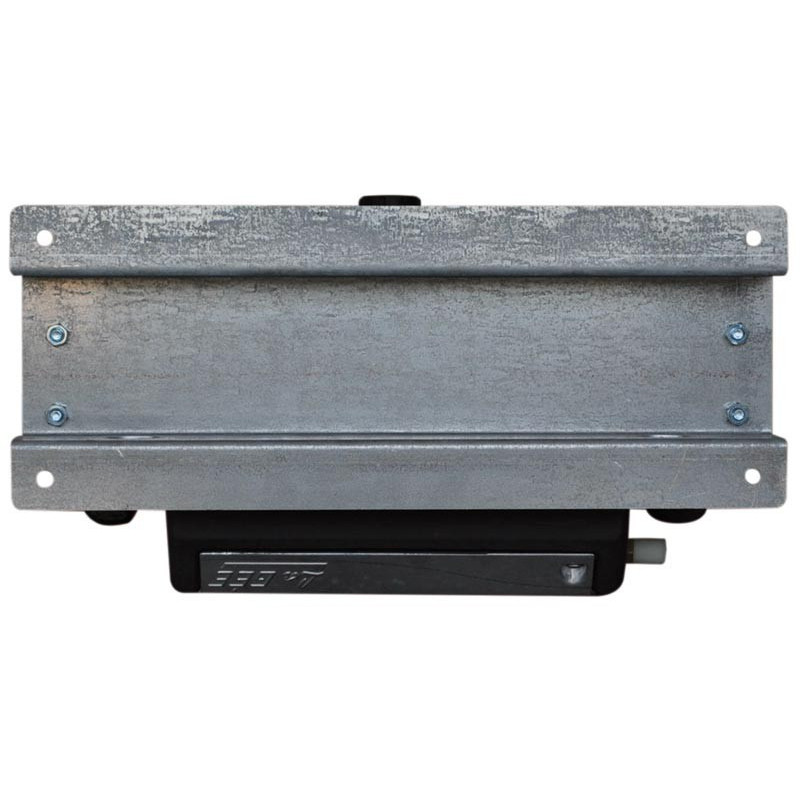

Can be wall-mounted using the galvanised steel fastening support.
Delivered with a galvanised frame. Aluminium housing to protect the float valve.
25 M model fitted with a through-wall drain plug 33/42 mm.
72 M model fitted with two through-wall drain plug 33/42 mm

Delivered without fastening support. Delivered with fastening support.

EAN code: 3700231912192
Categorie: Constant level drinkers

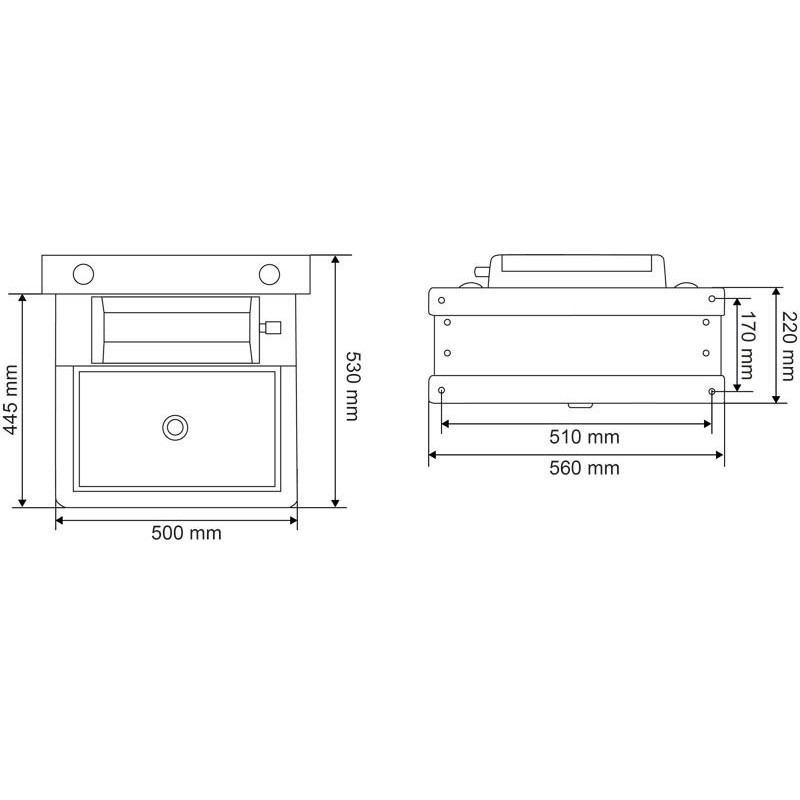

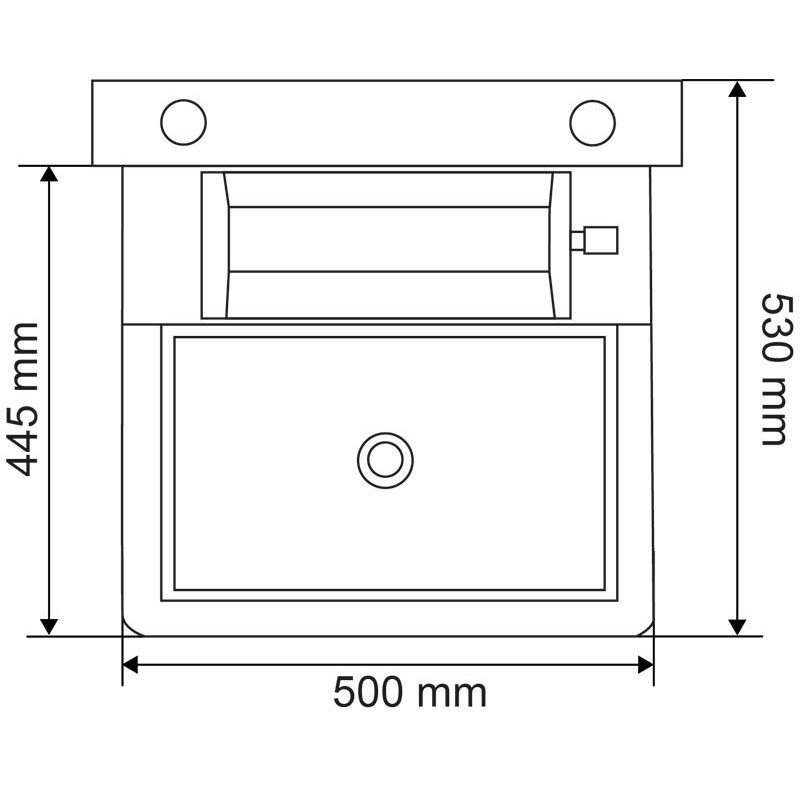

Width: 530 mm
Height: 305 mm
Type: interior rim
Model: 25 M
Sales unit: Unit
Packaging: Palette
Material: rotomolded polyethylene resin

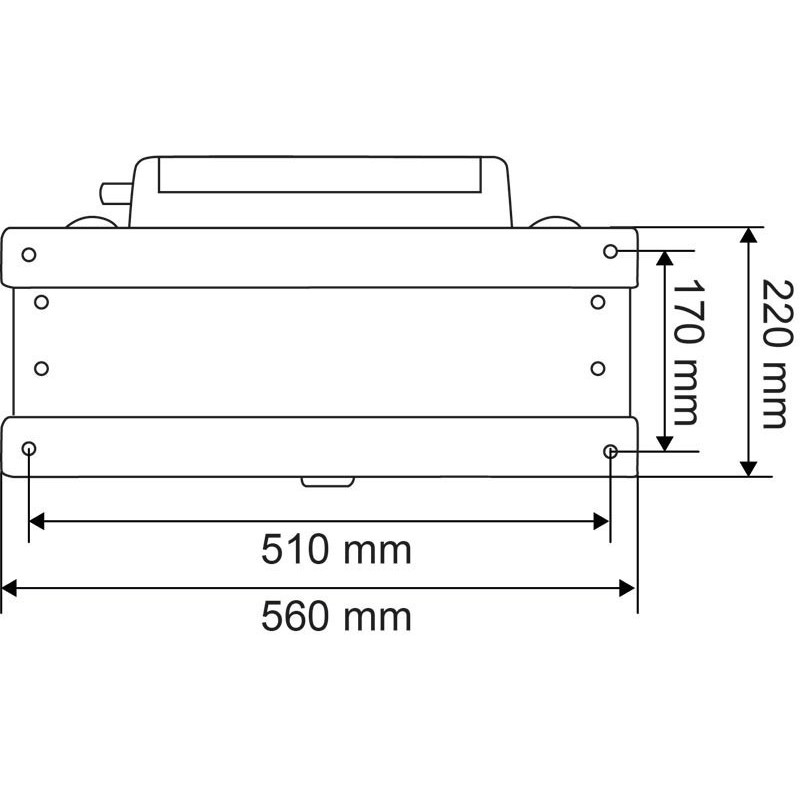

Length: 560 mm
Drinker: Polybac M
System: constant level
Mechanism: float valve tap
Float valve: Pressure network in polyamide white (P1138310)
Fastening: wall
Device: non-heating
Pressure: network
Connection diameter: 1/2" (15/21 mm) - male (25M on the side et 72M at the rear)
Drain plug: Through-wall drain plug 33/42 mm
Flow rate: 32 L/min
Capacity: 25 l
