Network pressure float valve (32 l/min)

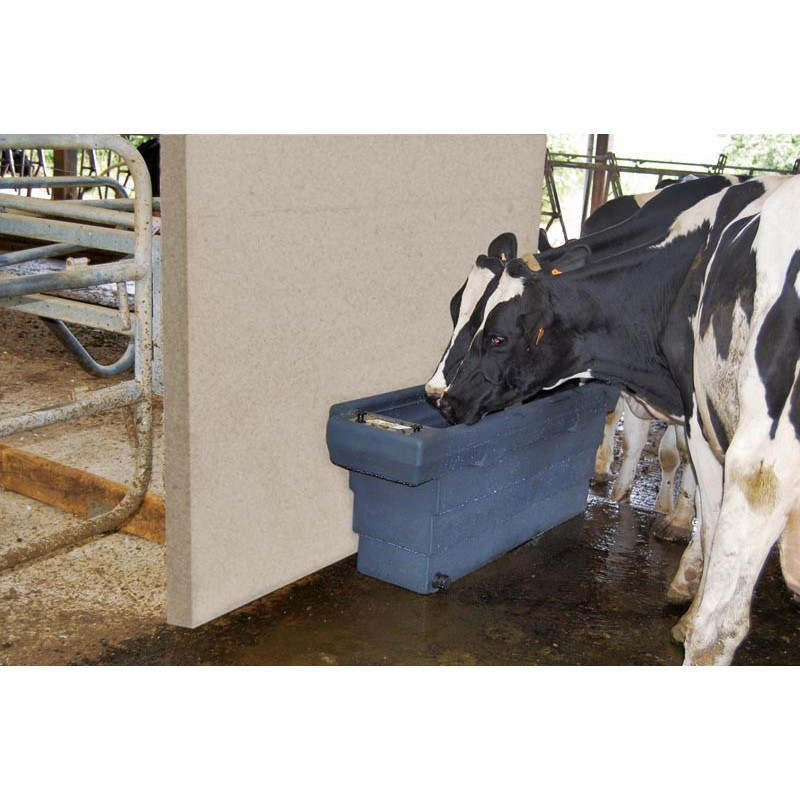

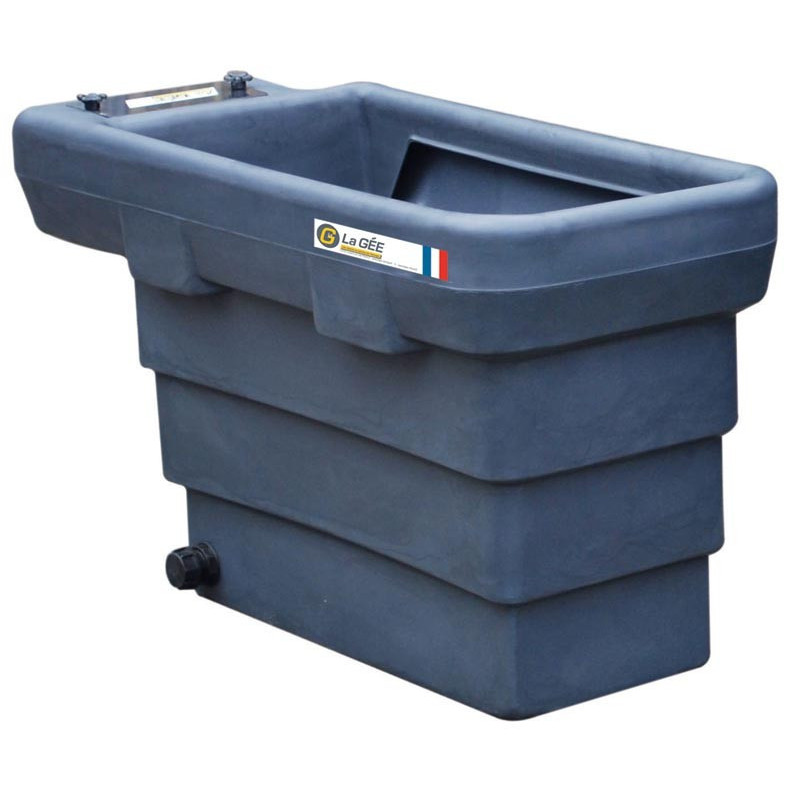

POLYBAC S 175 L drinker
Reliable and economical.
Made in rotproof polyethylene.
POLYBAC S drinkers are ground-mounted. They are designed with a deep and narrow rotomolded polyethylene trough.
The interior trough is smooth and easy to clean with a heavy duty interior rim avoiding wastage.
A locking system on each float valve enables the water supply to be shut off at any time without any tools.
The water inlet connection is fitted with a 1/2 male connector wall-side.
Ideally operates on pressure range from 3 to 4 bars.
Fitted with:
- 1 adjustable 32 liter/minute network pressure float valve tap.
- 1 33/42 drain plug.

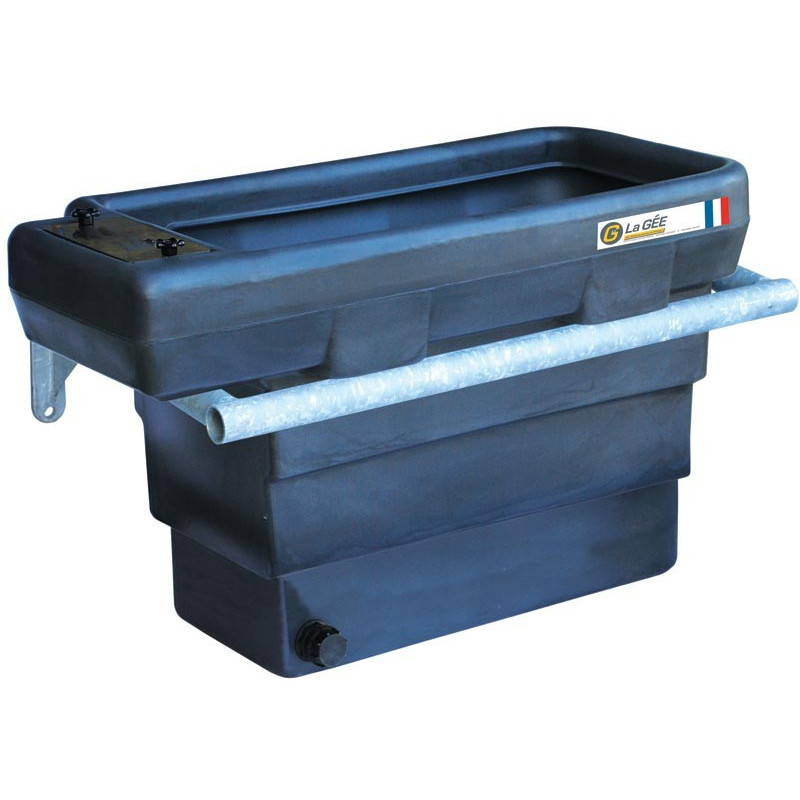

Optional: Metallic protection for Polybac S.
Delivered without metallic protection.
- EAN code
- 3700231904043
- Categorie
- Horse drinkers

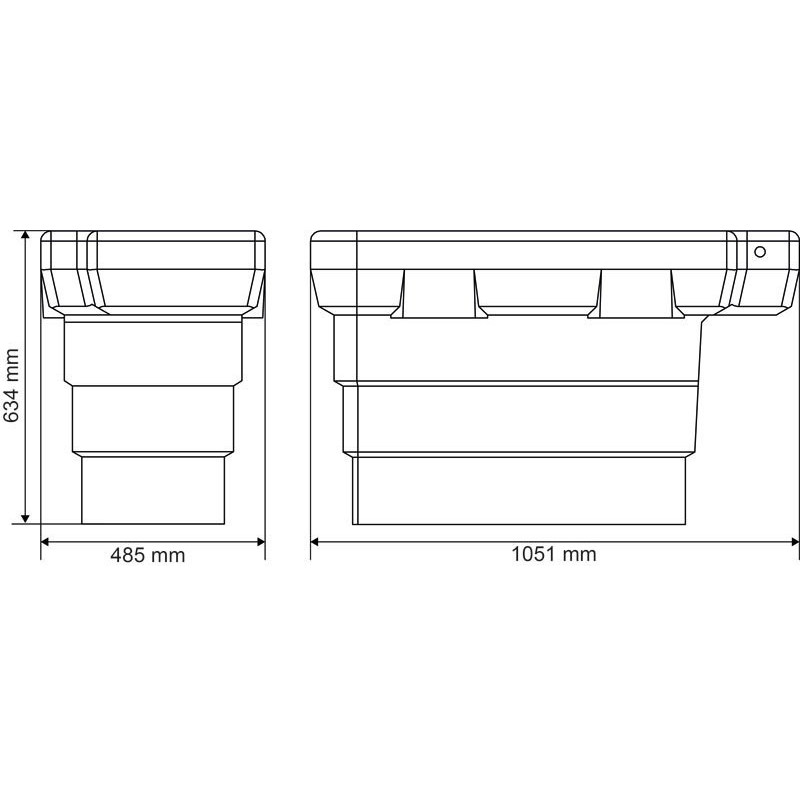

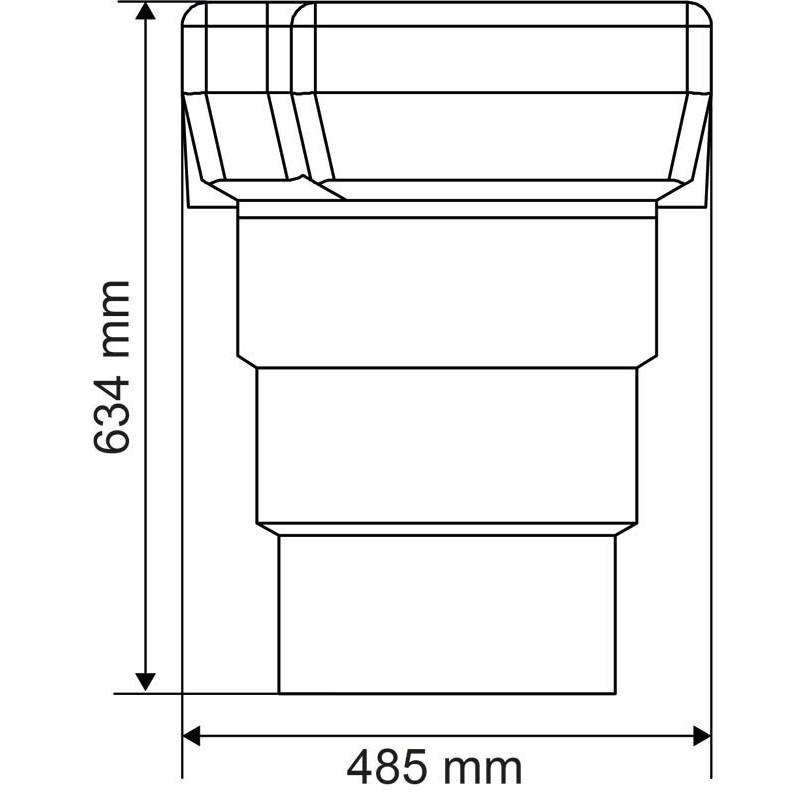

- Width
- 485 mm
- Height
- 634 mm
- Model
- 175 S
- Sales unit
- Unit
- Packaging
- Without packaging
- Material
- rotomolded polyethylene resin

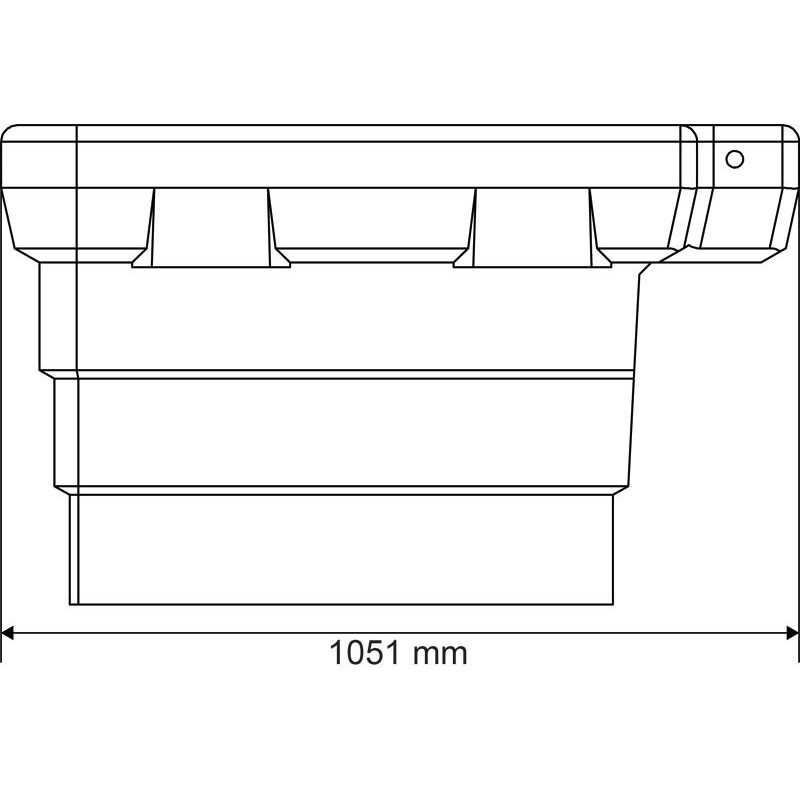

- Length
- 1051 mm
- Drinker
- Polybac S
- System
- constant level
- Mechanism
- float valve tap
- Float valve
- Pressure network in polyamide white (P1138310)
- Fastening
- ground
- Device
- non-heating
- Pressure
- network
- Connection diameter
- 1/2" (15/21 mm) - male wall-side
- Drain plug
- Through-wall drain plug - Ø 33/42 mm
- Flow rate
- 32 L/min
- Capacity
- 175 l
