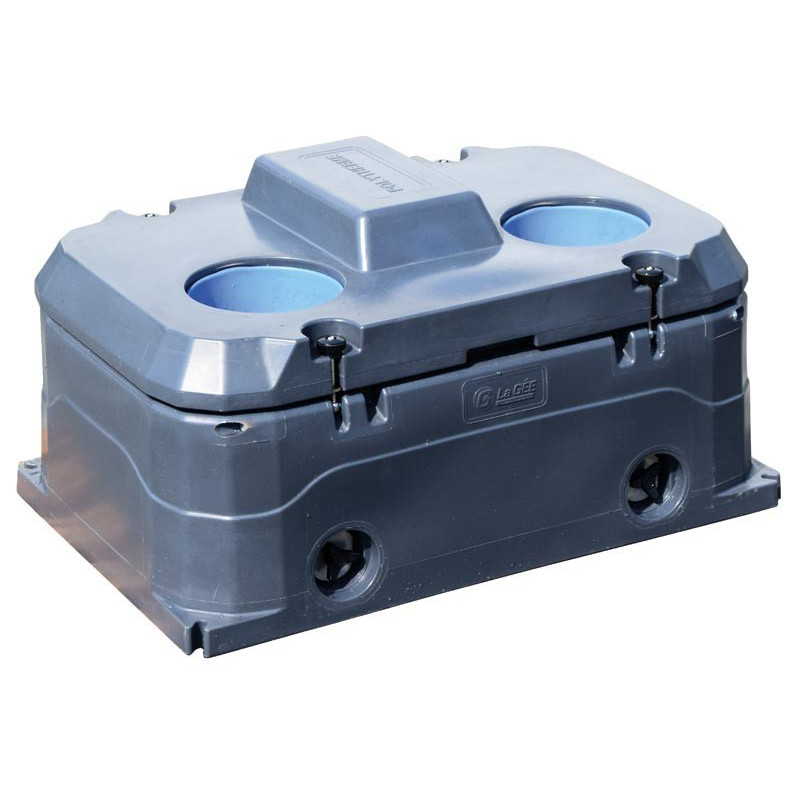

POLYTHERME 2 bowl drinker

Isothermal drinker designed with a double-wall rotomolded polyethylene trough insulated with polyurethane foam. Isothermal lid with double seal, and an insulated ball or bowl for an easy access of the animals.
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in case of high temperatures.

These drinkers are standard fitted with an innovative opening and closing system.
Opening from the front or the rear part thanks to the multifunction hinges.
Or the lid can be removed anytime from the drinker without any tool.
This design and the new opening system enable the drinker’s installation in any place without having a wall or a gate as an obstacle, which could prevent the drinker from an easy opening.
The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.

Fitted with:

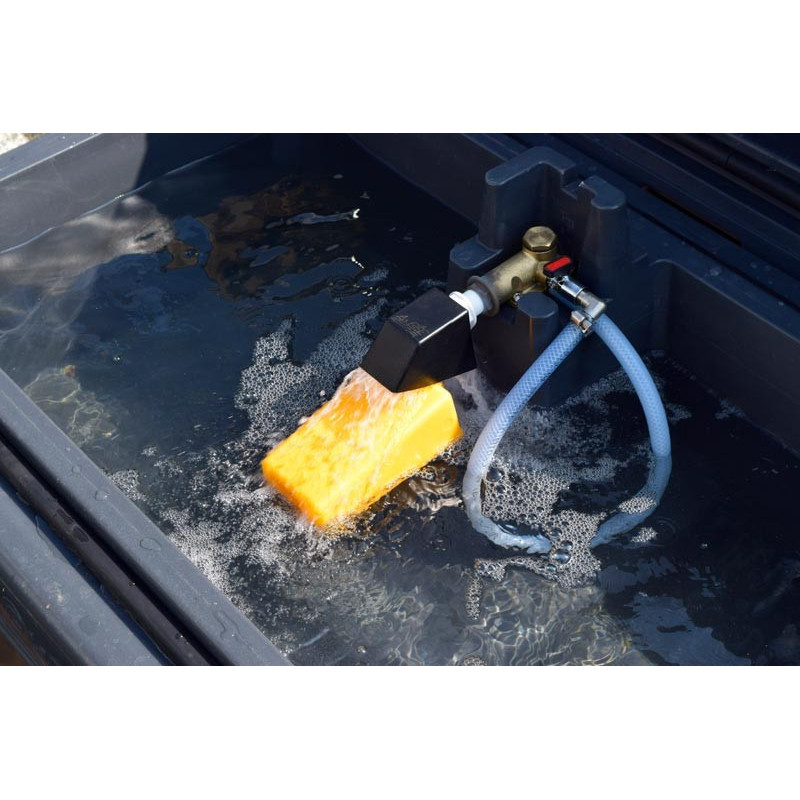

- 1 Float valve equipped with an anti-splash housing.

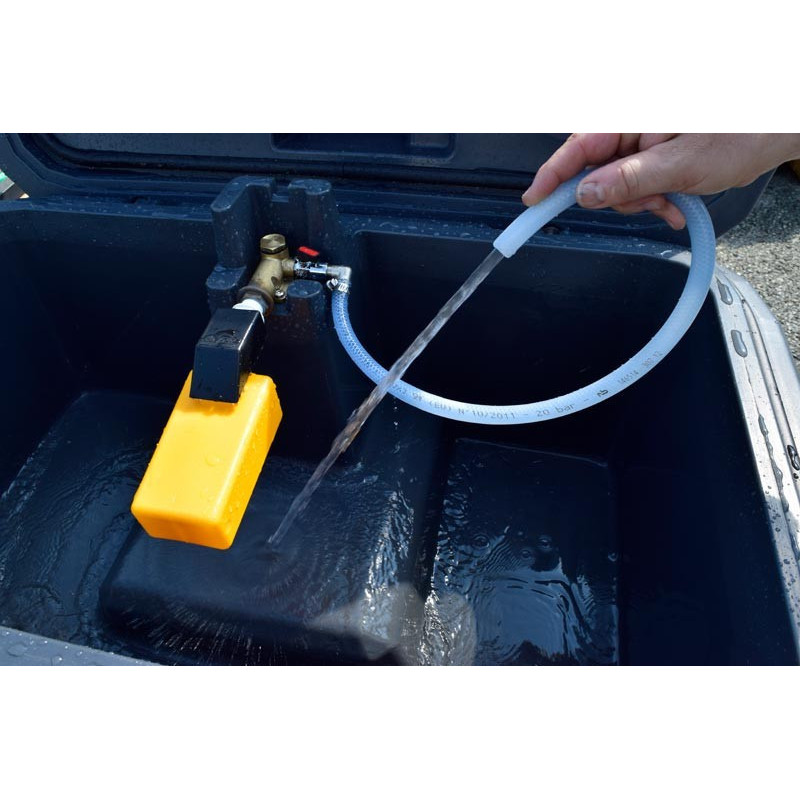

- 1 Standard fitted with a cleaning system.

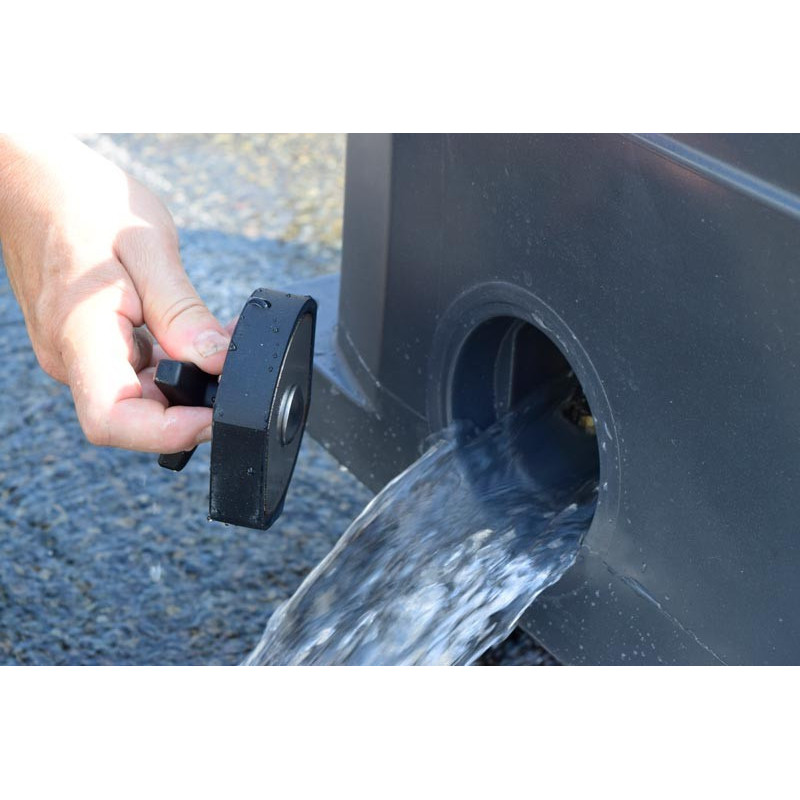

- Drain plug (Ø 90 mm). 1 drain plug for Polytherme 1 ball/bowl 2 drain plugs for Polytherme 2 balls/bowls.
- 1 seal to be set under the drinker.
- 1 connection hose protected by an insulating sleeve.

Installation:

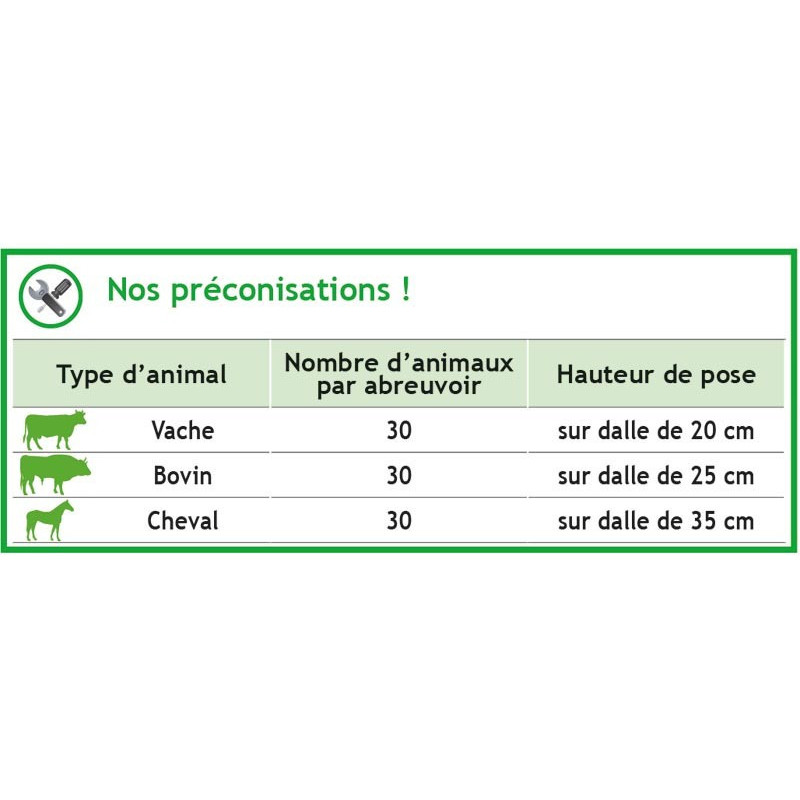

It can be used indoors or outdoors, fixing to the ground on a raised slab of about twenty cm. For good insulation position the seal under the tray.

Pour l’abreuvement de troupeaux.

The Polytherme bowl drinker is available with 1 or 2 cast aluminium bowls. It is mounted in a rotomolded channel fastened under the lid. It is flush with the water contained in the trough and passes through four holes in order to be accessible. The water level is constantly regulated with a constant level mechanism. The bowl can be removed at any time, with a quarter turn, to clean residue.
