Non-heating POLYSPRING II constant level drinker

Name: Non-heating POLYSPRING II constant level drinker
SKU: p1130553

Designed to be set on PE Columns to protect from freezing. Suitable between two pens.

Code p1130553

Description

The non-heating POLYSPRING II constant level drinker is upgradeable via an optional heater kit.
Optional : Polyresistance 80W - 3VA.

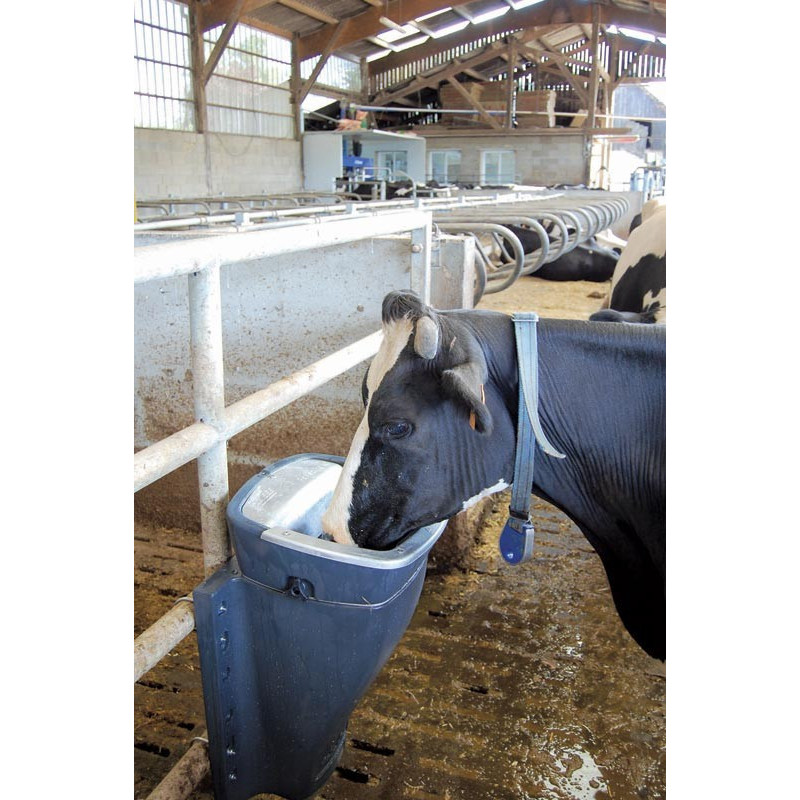

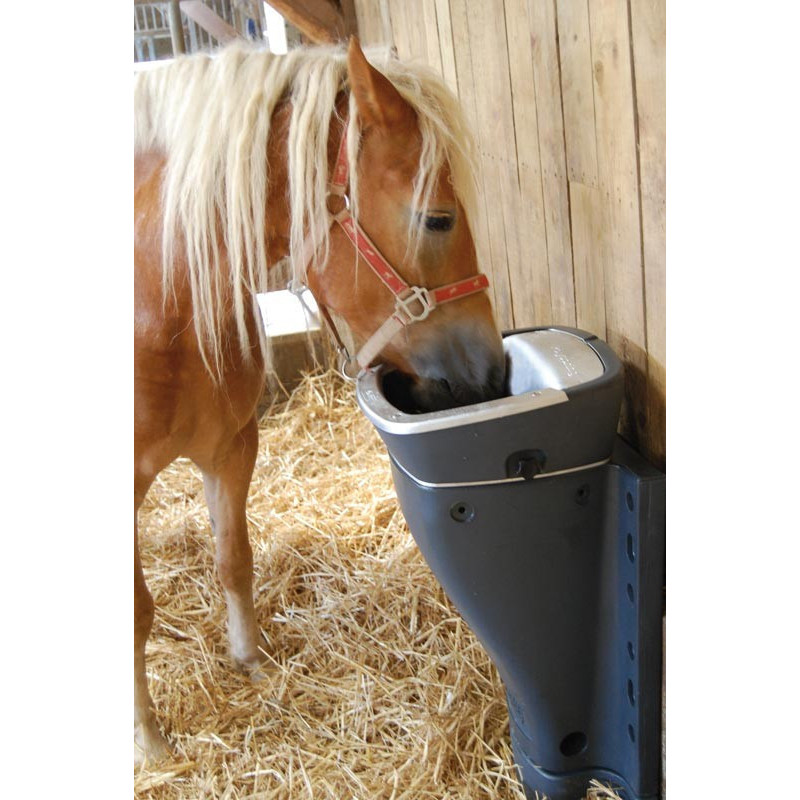

POLYSPRING drinkers are designed to be used in numerous configurations.

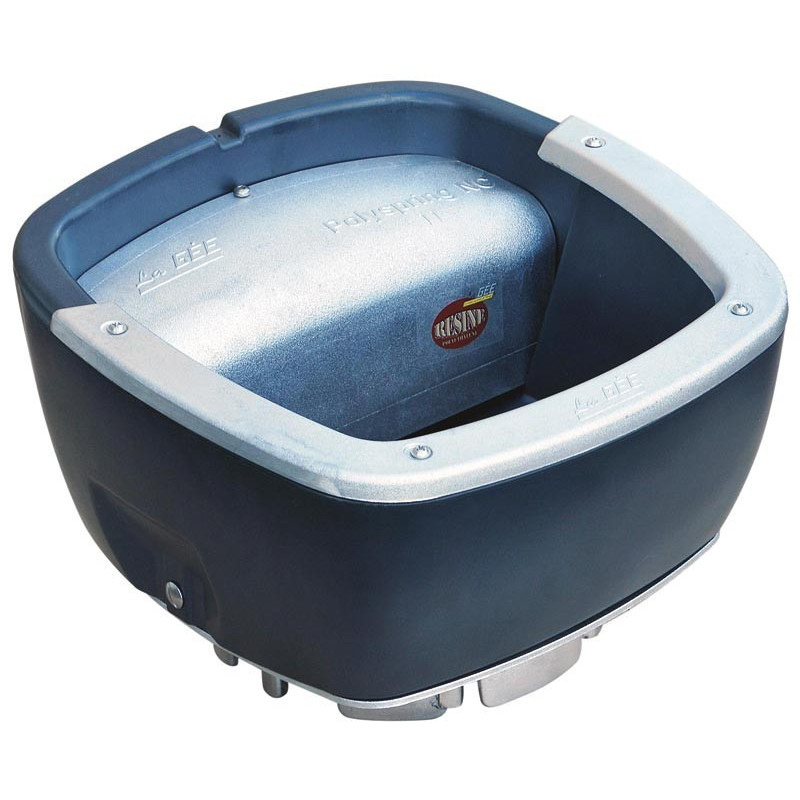

Fitted with a constant level mechanism, they are designed with a wide double-walled, rotomolded polyethylene bowl.

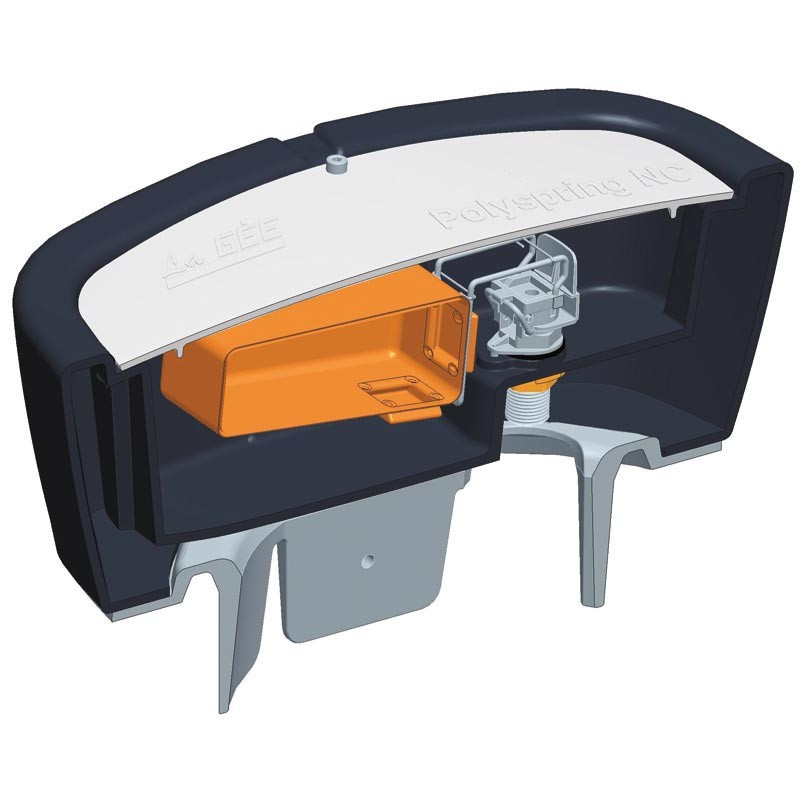

Their mechanism is protected by a high-quality cast aluminium housing. The mechanism is 15 liters/minute depending on the pressure. The constant level model works ideally with pressure of 3 to 4 bars maximum.
They are fitted with:

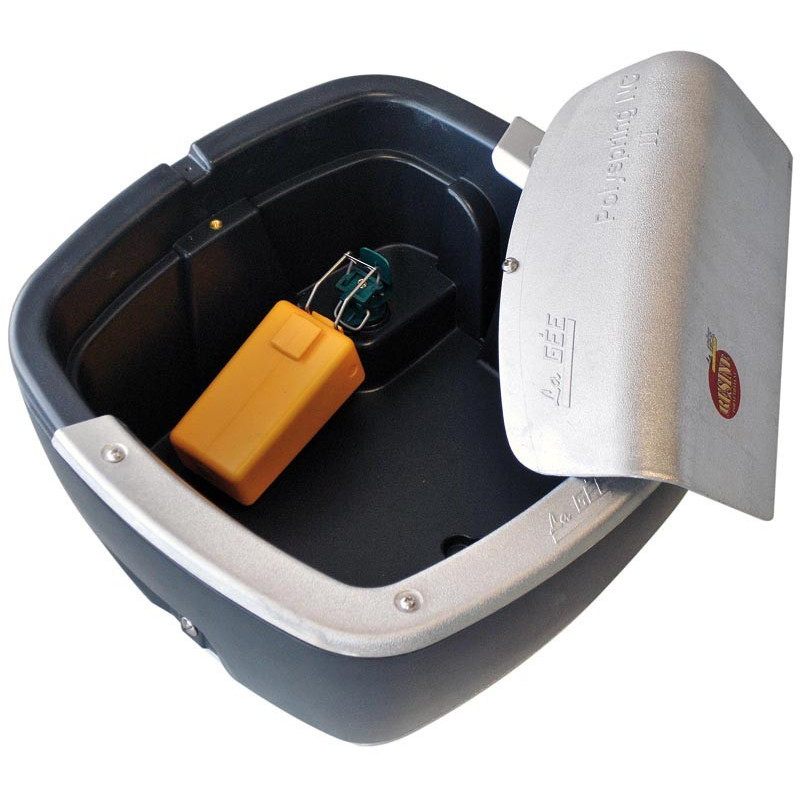

• 1 LA GEE 15 litres/minute green float valve tap with adjustment screw,
• 1 water stop system,
• A cast aluminium mounting plate that can be directly fastened above the column,
• An anti-spill cast aluminium rim for optimal use without spillage, thus keeping bedding material clean.

In case of use on a network with higher pressure, it is mandatory to use a pressure limiter and filters.

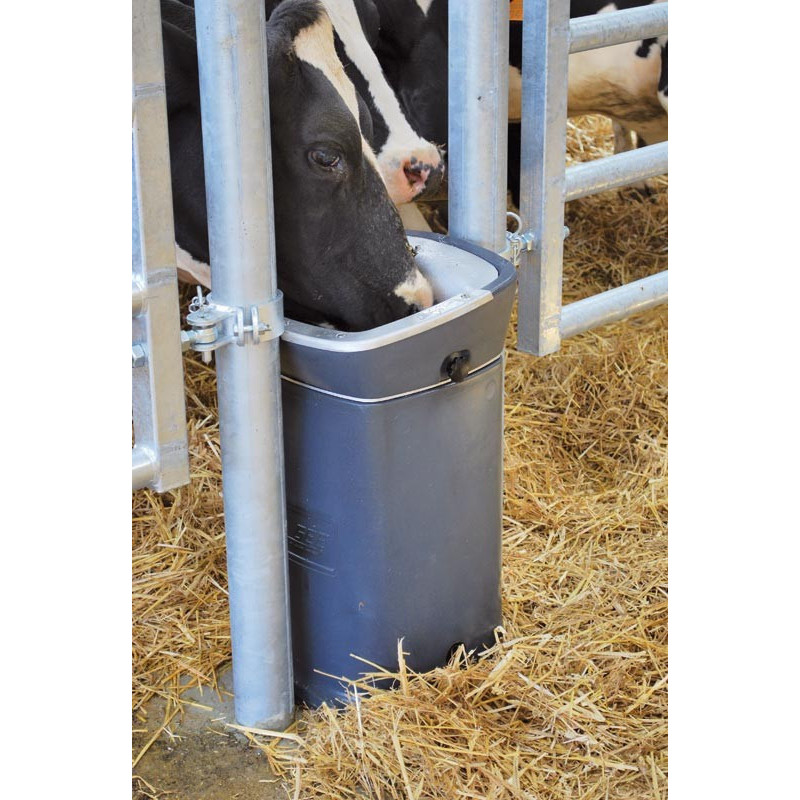

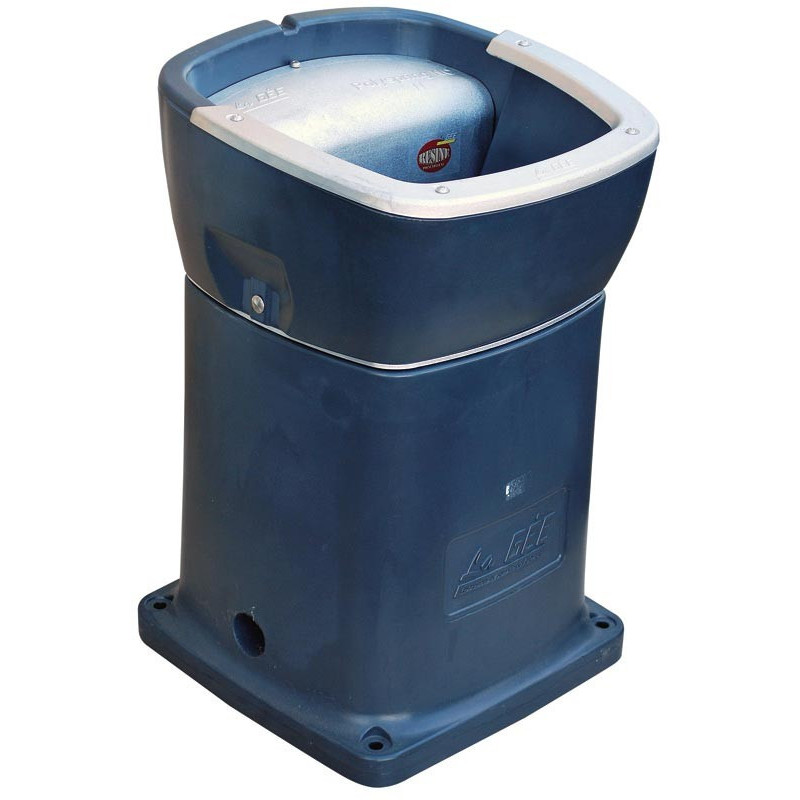

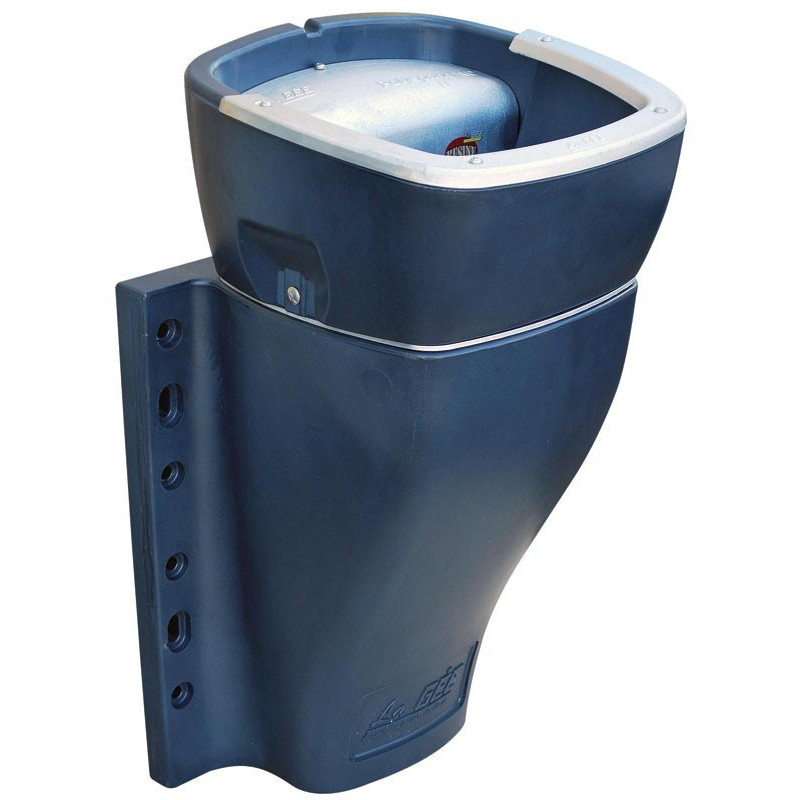

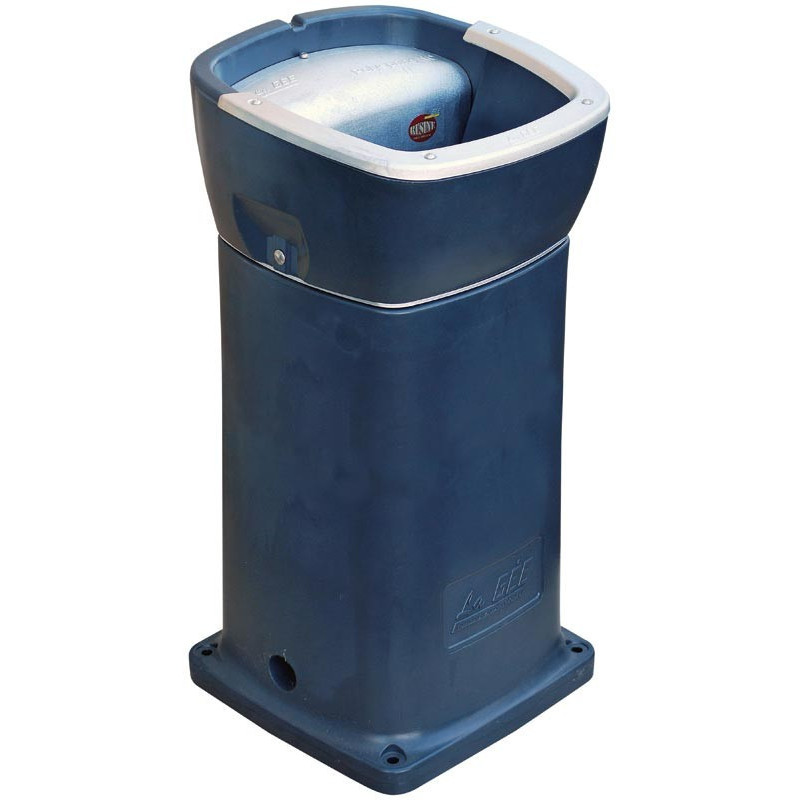

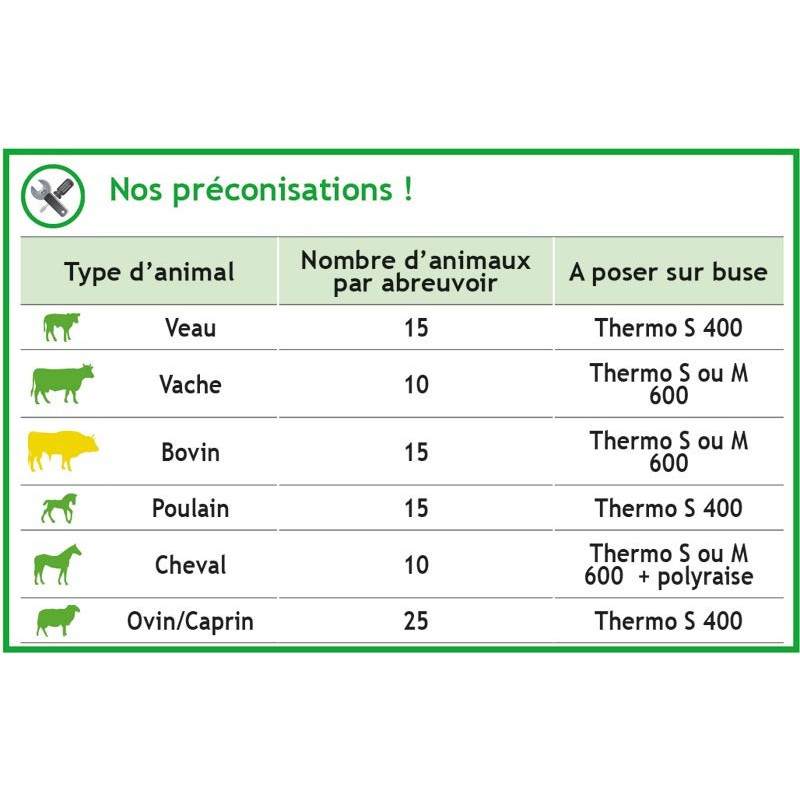

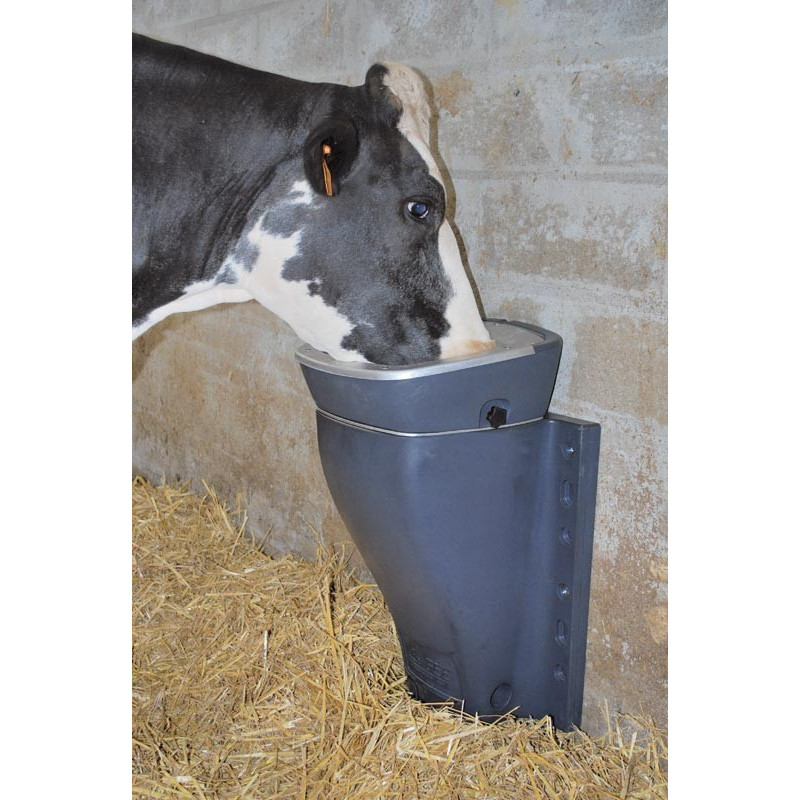

Mounting recommendations: should preferably be installed on a rotomolded THERMO M, S or S PLUS column depending on the required installation or type of livestock.

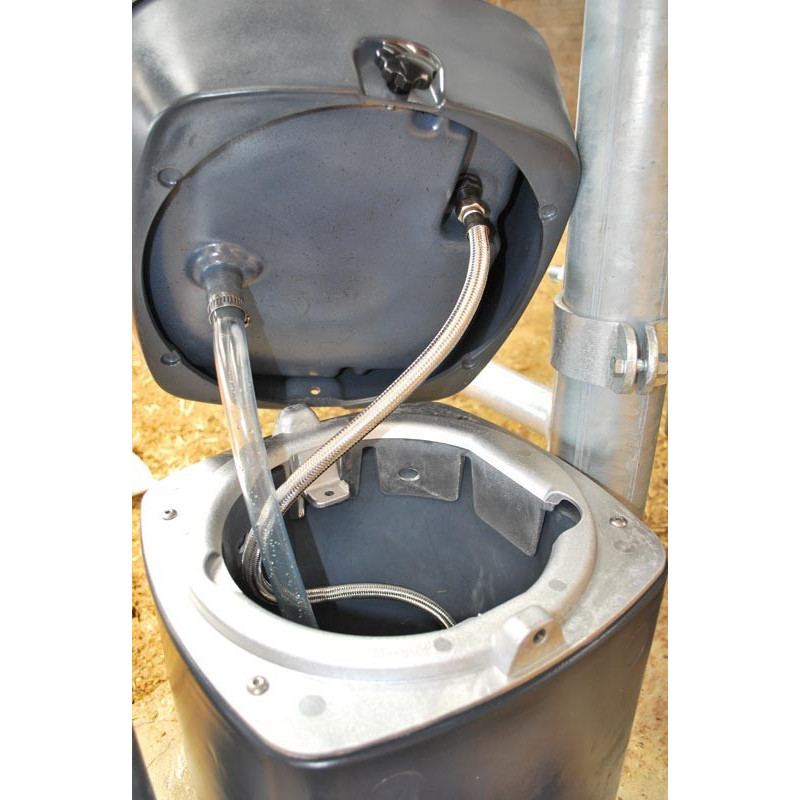

Water supply can be connected directly to the THERMO M, S and S PLUS columns since it is delivered with a 1/2 flexible stainless steel braided hose.

Delivered without column.

Compatible with Thermo S600, S400, M and S PLUS columns.
