Self-service box façade 3 m (without door) : p1241101

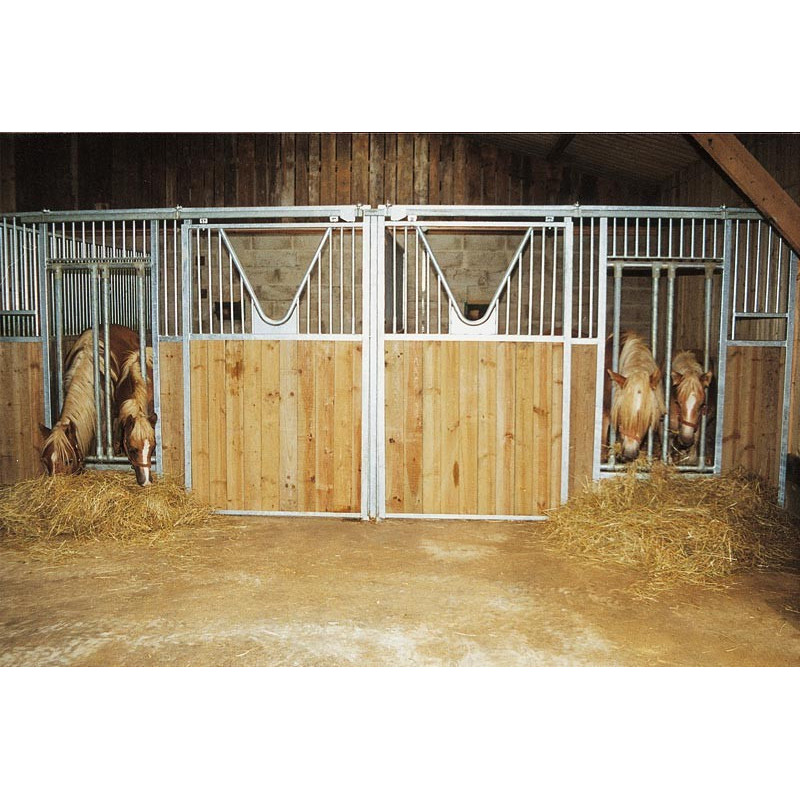

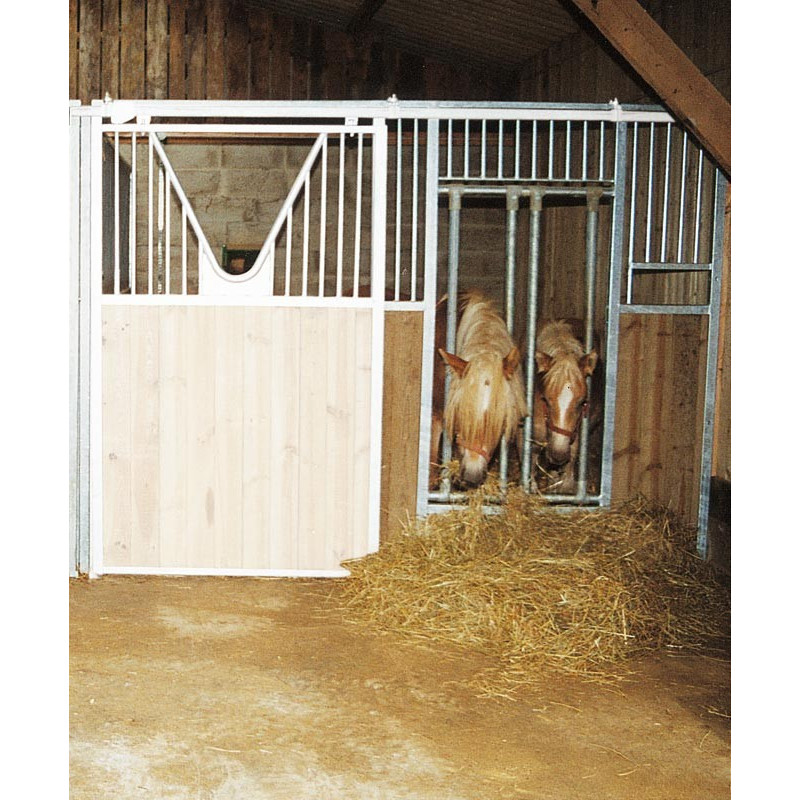

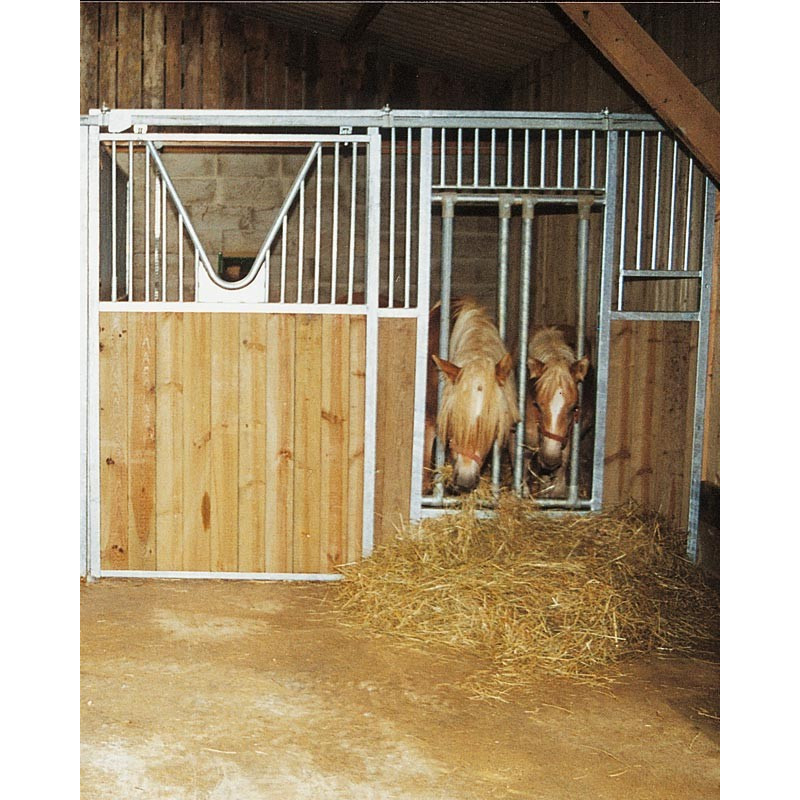

Self-service box façade 3 m (without door)

Name: Self-service box façade 3 m (without door)
SKU: p1241101

Allows hay distribution outside the box.

Wood :

Code p1241101

Description

Allows to distribute hay outside the box, avoids multiple manoeuvres and waste.
The panel offers rapid creation of spaces with variable widths between building posts, stalls or between walls.
CAUTION: do not exceed 60 cm space between bars, French Haras Nationaux standards.
Reversible left/right.

The front includes :
- 1 mechanically welded galvanised metal framework
Riser: 50 x 50 mm - Profiles: 30/40 x 50 mm
- 2 head passage tubes
Upper part barred with integrated feed opening.
The bars Ø 21.3 mm are welded with spacing of 60 mm maximum, corresponding to French Haras Nationaux standards.
Hot galvanised after assembly provides greater longevity and resistance.
Head passage width 790 mm adjustable depending on neck size of animal.

Optional: Bars with head passage for complete closure or for small horses (P1235713).

Delivered without door and fastenings, wood not fitted.

Compatible with a sliding anti-weave or barred door.

Categorie: Horse stable fronts
Width: 3 m
Height: 2.36 m passage under rail 2.25 m
Sales unit: Unit
Packaging: Without packaging
Overall height top part: 0.97 m
Façade panel: With adjustable head passage
