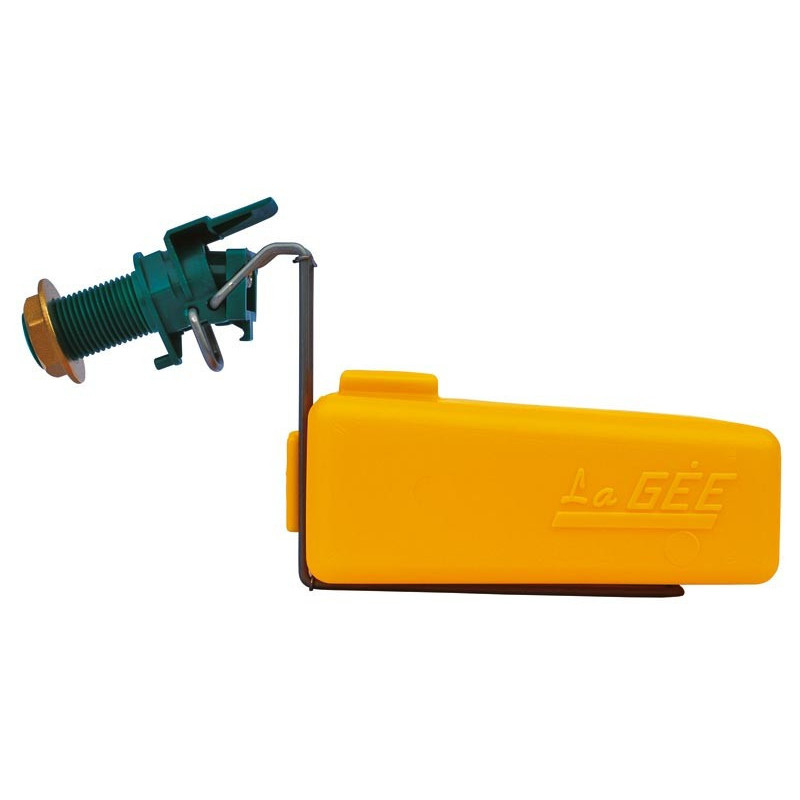

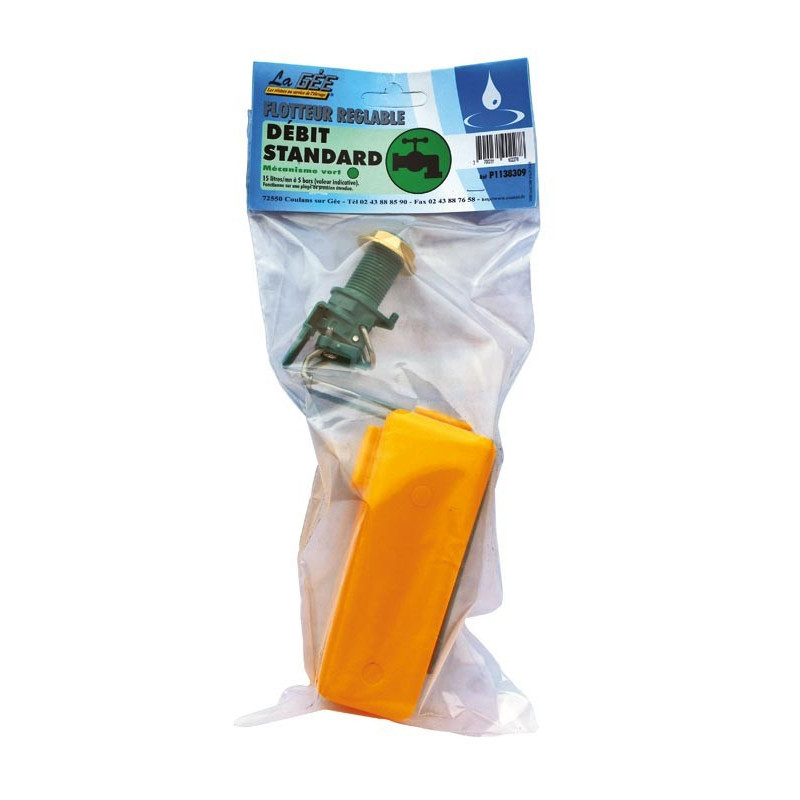

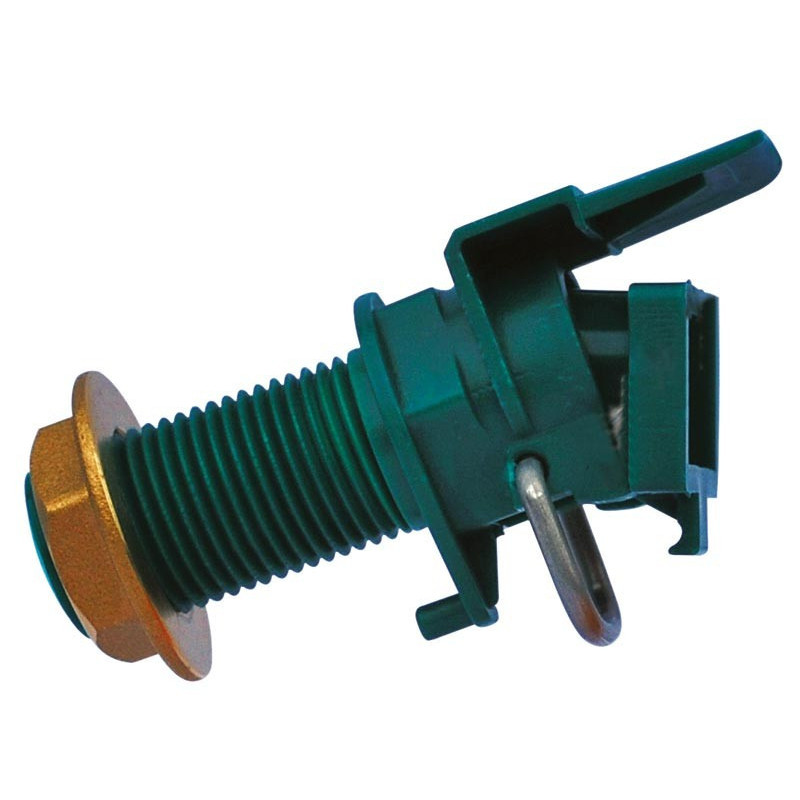

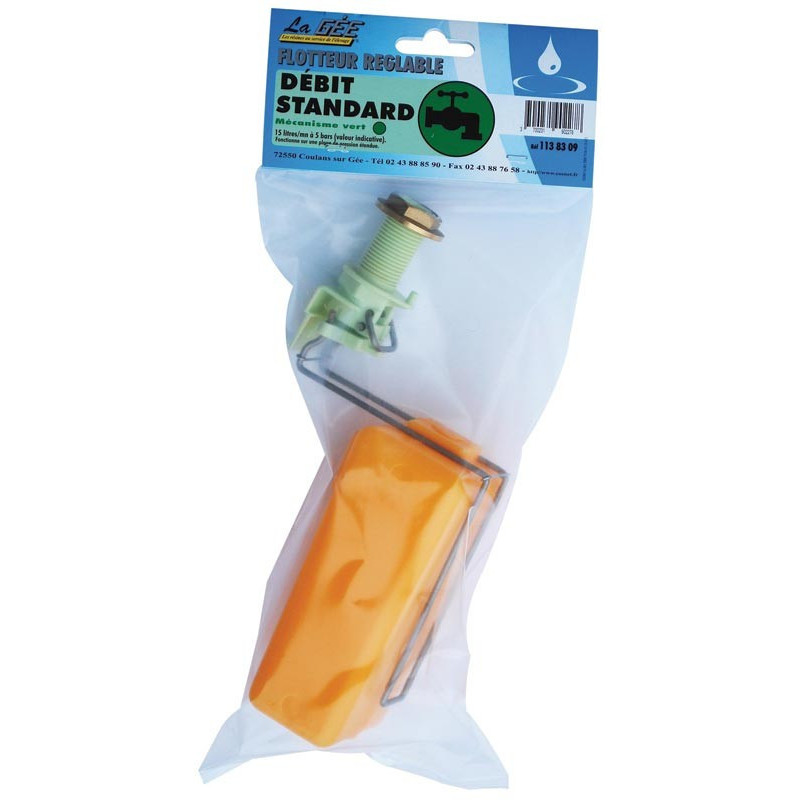

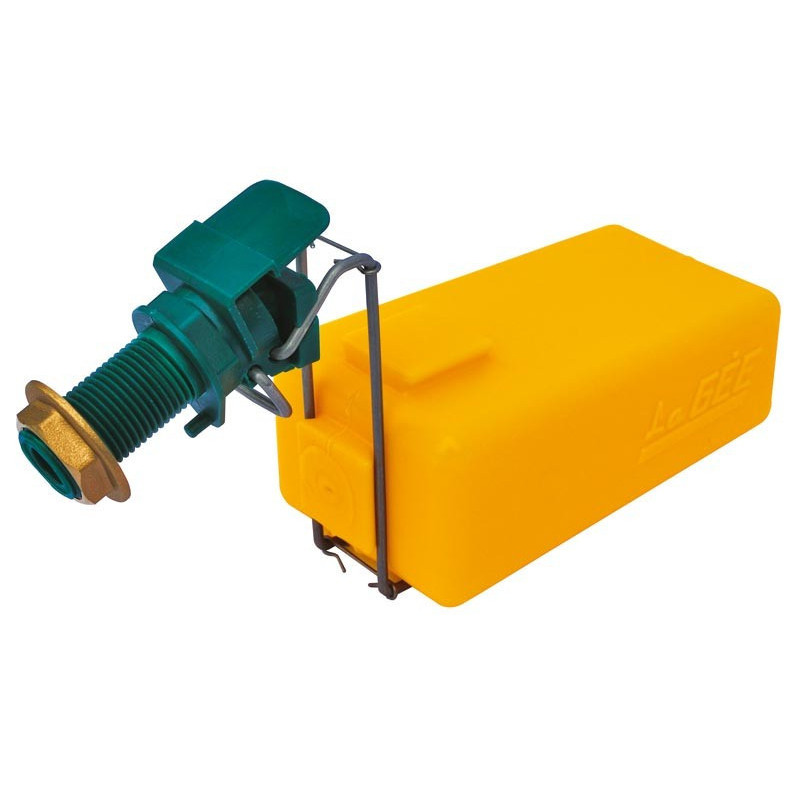

Network pressure float valve tap (15 l/min)

The float valve tap, adjustable in height and length, adapts to the force needed to shut off the flow depending on the water pressure and desired water height. Network pressure and low pressure mechanisms fitted with an indexer, anti-splash, and water stop to halt the flow in the system at any time.

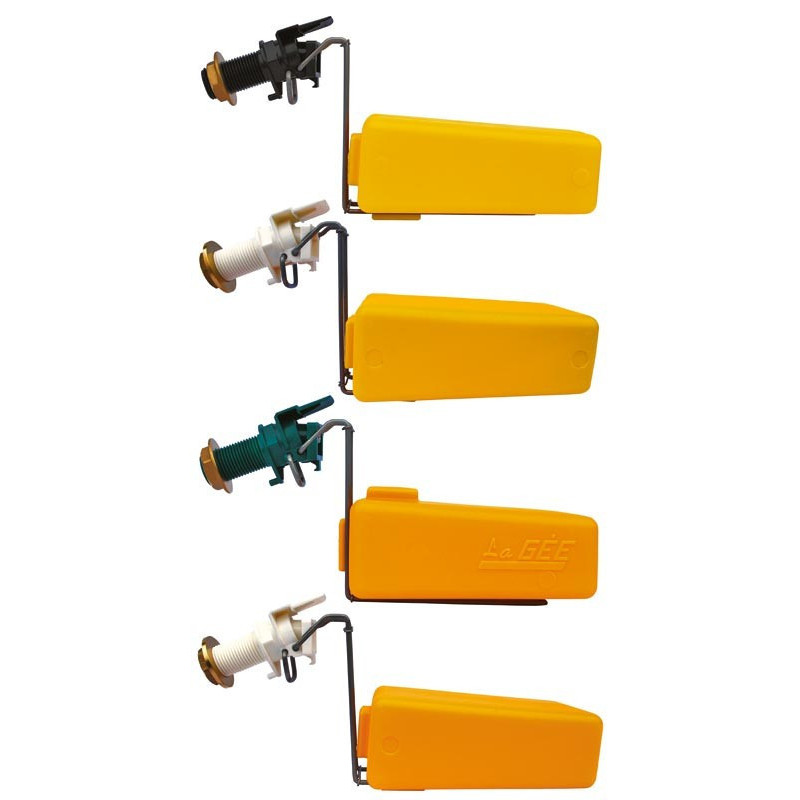

Available in different versions:
- 15 liters/minute flow rate with green polyamide float valve with or without adjustment screw.
- 32 liters/min flow rate, white translucent polyamide float valve.
- 32 liters/min flow rate, white polyamide float valve with height flow adjustment screw.
- Low pressure flow rate, black polyamide float valve.

Also available our 42 liters/minute flow float valve in brass with two factory fitted floats for large capacity drinking troughs. It can be upgraded by adding 2 floats for any pressure above 4 bars.

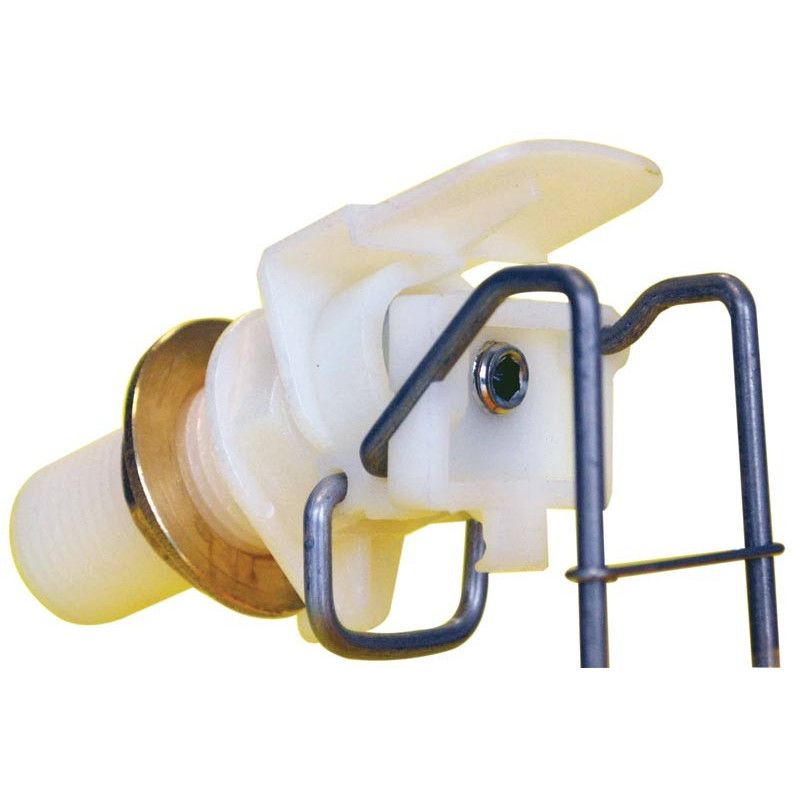

Adjustable float valves are fitted with an adjustment screw.

Body in polyamide. Possible to adjust height and flow rate via adjuster screw on adjustable models. Ideally operates on a pressure range from 3 to 4 bars.
15/21 (1/2") male thread outlet.
