Field box extension 4x3m
The extension cannot be used alone.
It is necessary to have at least one twin slope shelter or box.
Delivered non-assembled. without ground anchoring bolts.
Compatible only with La Gée twin slope shelters and boxes.
It is necessary to have at least one twin slope shelter or box.

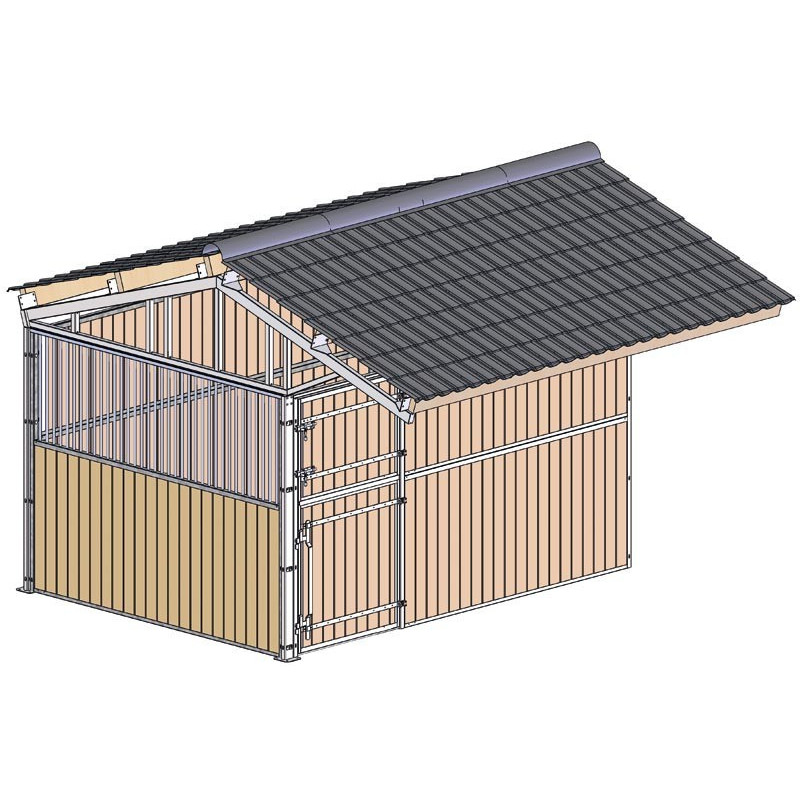

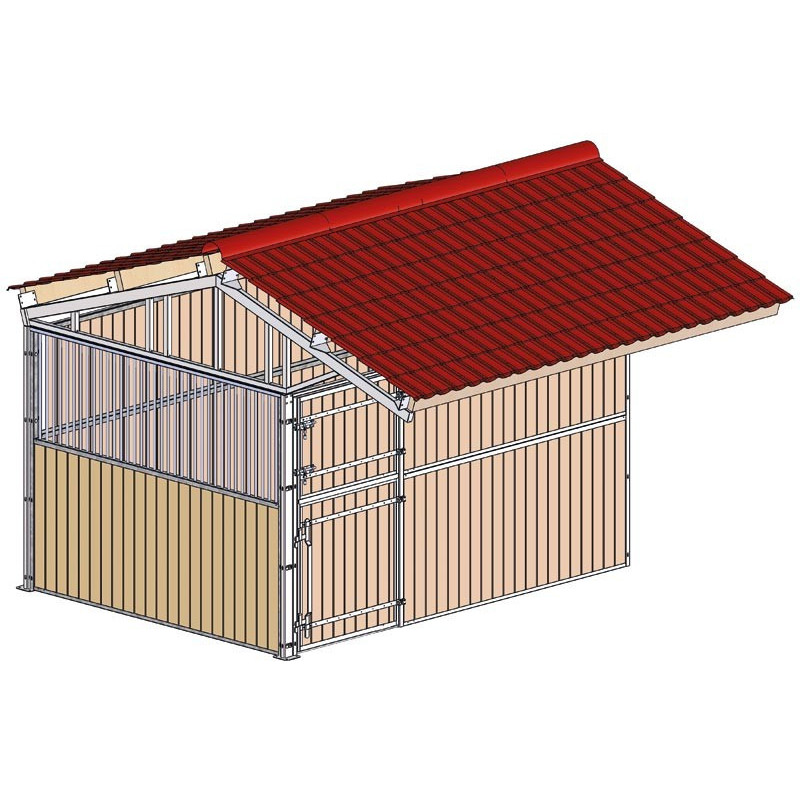

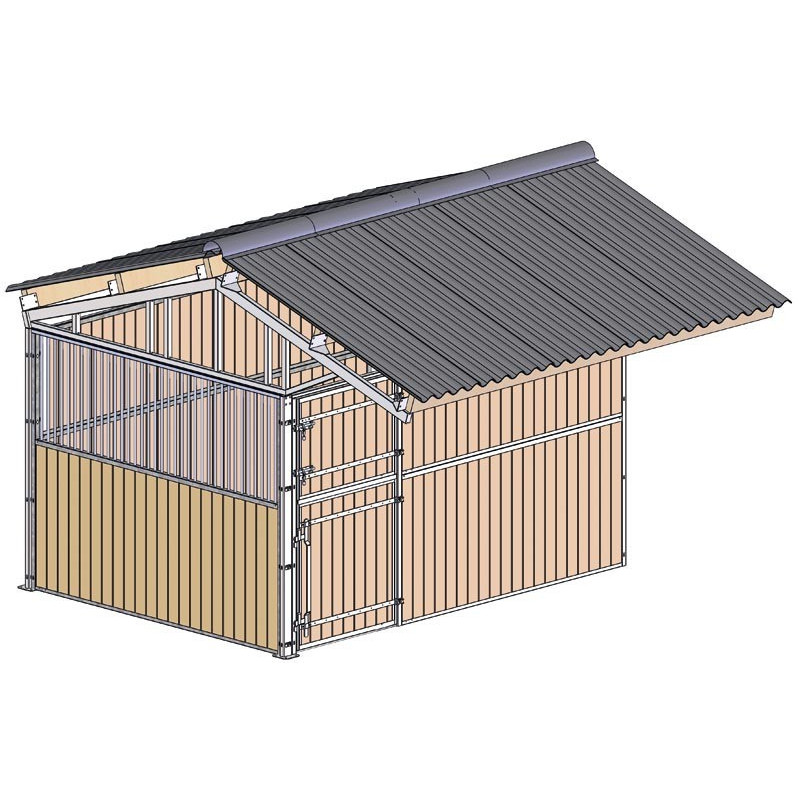

The twin slope exterior box extension includes:
- 1 complete roof covering in alu-zinc (2 colours available) or in fibre cement
- 1 framework comprising 6 beams
- 1 frame in galvanised steel
- 2 posts
- 1 end finishing panel
- 1 solid wood partition
- 1 kit of all bolting required for assembly
- 1 solid wood façade with top & bottom box door PRO 1.20 m
- 1 partition with barred upper part.
During a later fitting of an extension, it is necessary to remove the gable from the extension side to fit it at the end of the building.
The latter will then be replaced by the supplied intermediary framing. Roof slope: 18° or 32.5%.
Delivered non-assembled. without ground anchoring bolts.
Compatible only with La Gée twin slope shelters and boxes.
- Height
- 3.50 m
- Façade
- Solid wood
- Type
- Field box extension
- Model
- Twin slope
- Sales unit
- Unit
- Width x Ext. Dim.
- 4.10 x 3.10 m
- Width x Int. Dim.
- 4.05 x 3 m
- Overhang
- 1.65 m
- Min. height under roof
- 2.30 m
- Door
- Pro Model
-
